A LEADING MANUFACTURER OF

HDPE DOUBLE WALLED CONRRUGATED PIPES

About Us

We are Veronica Plastomatics Private Limited – a leading manufacturer of Double Walled corrugated pipes with a state of the art manufacturing facility located at Ahmedabad. Our production caters to an array of needs of various sectors such as AMC-Ahmedabad Municipal Corporation, National Highways, Public Works Department, Water Department and other Domestic markets.


Since our inception, we have focused on giving our clients products that are reliable, sturdy and which optimize their process flow. With this view, we have indigenized a state of the art manufacturing line that enables us to produce HDPE DWC pipes of various sizes with an average output of 5000 meters per day. Our product comes in the size range of 40mm to 160mm in diameter and can also be customized to meet clients requirements of any volume or scale. Our manufacturing team further ensures that only superior quality of raw materials is used. Such as, different graded HDPE for manufactures power and communication products.


Quality is precedent to us and it applies to all our manufacturing processes. We follow stringent quality control at various production stages starting from the procurement of raw material to the packaging, until the delivery of products. Our full fledged quality control lab has all the required tools and equipments that are operated by our well trained team to give our products consistency and reliability.

We are certified with ISO 9001:2015 and we hold IS:16205 (Part-24) 2017.

Clienttele

From providing customized solution to offering products within committed time-frames, we undertake every endeavor with client centric approach, From providing customized solutions offering products well under time-lines as commited. We ensure to maintain effective communication with our client to further ensure that their problem or concerns are immediately answered. Our approach has allowed us to become a trusted name in our market segment and garner a significant clientele.


Municipal Corporations Nagar Palicas National Highway Authority
PWD/R&B departments Various Telecommunication Service Provider
Ahmedabad Municipal Corporation Surat Municipal Corporation Vadodara Municipal Corporation

Products Description

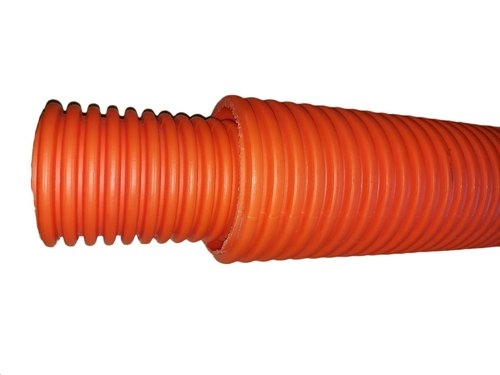

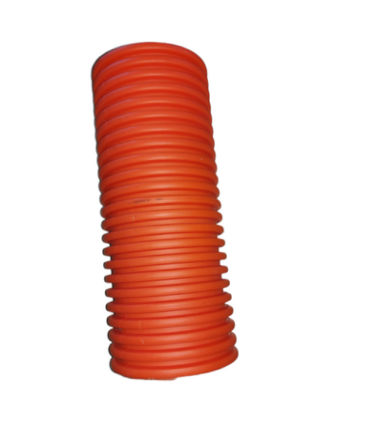

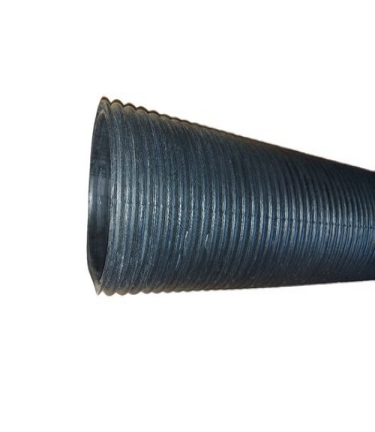

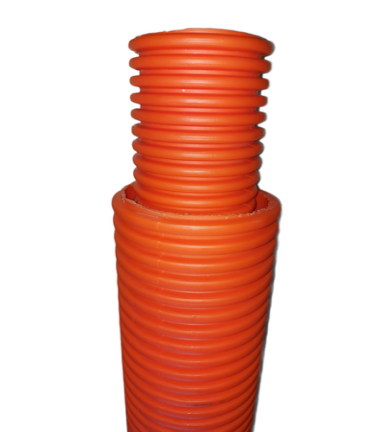

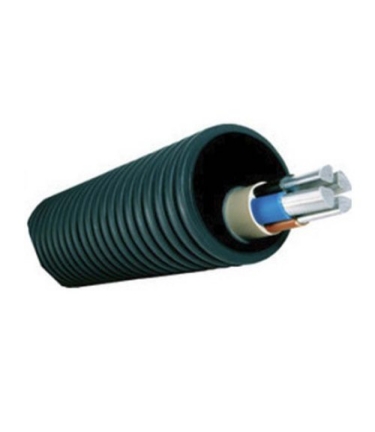

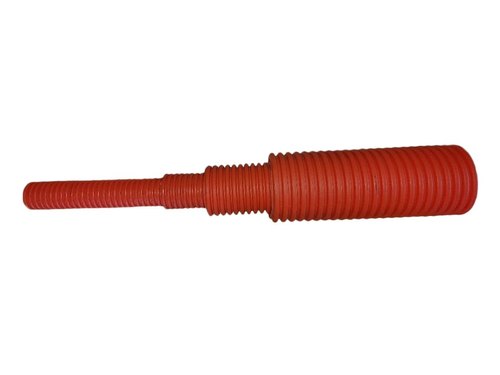

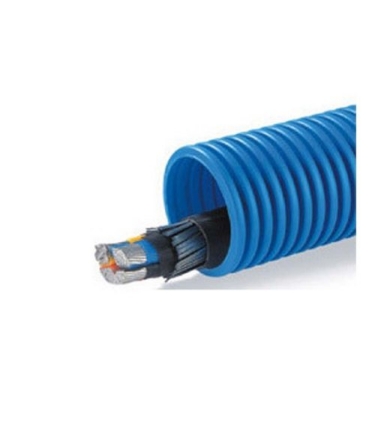

Double Walled Corrugated Pipes (DWC) are extensively used for the protection of cable ducts. The pipes provided by Veronica Plastomatics Pvt. Ltd. are as per IRC: 18-2000. DWC pipes provide a very economical solution as compared to conventional RCC and GI pipes. DWC has an average life of up to 50 years and provides superior performance under all conditions.



We manufacture (DWC) pipe of up to 750 Newton (Heavy duty), with ultraviolet protection and also anti rodent properties.

Why WDC

Installing WDC pipes has several unique advantages:

  • • Availability in different colours for easy identification
  • • Sturdy and durable design with a life span of about up to 50 years
  • • Smooth inner walls, excellent ring stiffness to ensure heavier load bearing capacity
  • • Minimum joints for ease of installation
  • • Available in 30, 50, 100, 200, 400 Meters up to 63 mm outer diameter (O.D) in straight lengths or in coiled forms. And for higher diameter in 6 meter straight lengths.

Some unique features of DWC pipes include:-

  • •Corrosion resistant
  • •Abrasion resistant
  • •Weather proof
  • •Excellent ring stiffness
  • •Chemically inert as well as environmentally safe

.

  • •Smoother inner wall for minimum friction and maximum durability
  • •Pipe roundness is maintained even after bending
  • •Consistent performance even with heavy load
  • •Available in anti Rodent and non Flammable Grades

Applications

  • •Highways
  • •Street Lighting
  • •Telecommunication Servcice Providers
  • •Power Distribution Companies
  • •Bus Rapid Transit System
  • •.
  • •Natural Gas and Petrochemical Distribution Companies
  • •Enterprise Network integrations
  • •Public Utility Cables
  • •Petronet Networks
  • •Railway Telecommunication Network Companies
  • •Traffic Signals

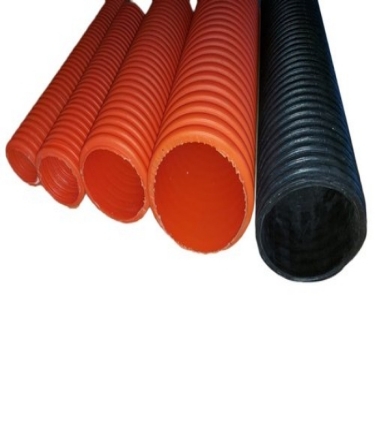

Available

Sizes OD/ID Length (Up to)
40 mm / 32 mm 6 Mtrs. Bars and Upto100/200/500 Mtr. Coils
50 mm / 38 mm 6 Mtrs. Bars and Upto 100/200/500 Mtr. Coils
63 mm / 51 mm 6 Mtr. Bars and Upto 100 Mtr. Coils
77 mm / 63 mm 6 Mtr. Bars
90 mm / 78 mm 6 Mtr. Bars
110 mm / 95 mm 6 Mtr. Bars
120 mm / 103.5 mm 6 Mtr. Bars
125 mm / 107 mm 6 Mtr. Bars
160 mm / 136 mm 6 Mtr. Bars

Avoid Comparison

NO. PARTICULAR METALLIC DUCTS CORRUGATED HDPE DUCTS
01 Corrosion Gets easily corroded therefore ducts left for future get damaged Absolutely corrosion free. Threrfore ducts remain intact for years together
02 Weathering Substantial effect of weather,Alkali, acids etc No effect of weather, Alkali,acids etc
03 Surface Coating Lead coating or galvanizing requires thereby increasing cost required No coating of any type is required
04 Compression Strength Good Equally good
05 Deformation by impact in service or handling Permanent deformation or dents occur On impact no permanent deformation or dents occur
06 Flexibility Very limited or no flexibility Very good flexibility
07 Bending A) Absolutely corrosion free. Threrfore ducts remain intact for years together. B) Bending may damage overlap of helical joints resulting into leakage A) On bending the inner section remains circular. B) The peculiar manufacturing process leaves no chances for leakage
08 Length Available in limited length Available in long length in coils
09 Jointing Requires Metal welding Very easy with snap on jointing
10 Electrical monitoring of tendons Not possible Possible due to electrical isolation of tendon from structure
11 Wastage during installation 10% Nil
12 Cost of jointing More Less
